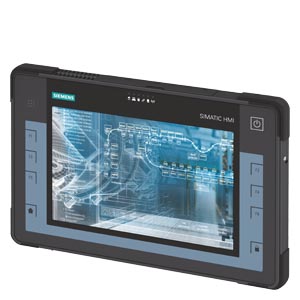

SIMATIC Industrial Tablet PC

The SIMATIC Industrial Tablet PC takes the performance of SIMATIC industry PCs to the tablet format.

With a large number of functional expansions such as a 1D/2D bar code reader or user identification by RFID, it taps diverse possibilities of use.

SIMATIC ITP1000: Industrial rugged pc

  • High-quality components and modules with a high MTBF (mean time between failure), which also ensure 24-hour operation in the extended temperature range up to +45°C
  • Rugged enclosure designs with high electromagnetic compatibility (EMC)
  • Hardware available in the long term

Powerful and many functions on board

  • High-performance Intel Core i5-6442EQ or Intel Celeron G3902E notebook CPU
  • Many interfaces on board:
    LAN, SD card reader, USB interfaces, RS232, audio
  • WLAN and Bluetooth integrated
  • RFID, bar code reader (1D/2D) and camera for a highly diverse range of mobile applications
  • Windows 7 Ultimate 64-bit / Windows 10 IoT Enterprise 2016 LTSB (64-bit)


Benefits

High degree of industrial capability

The entire construction is designed for industrial use, be it high temperature in continuous running duty or industrial EMC requirements.

Investment protection

High component continuity and guaranteed availability of spare parts for up to 5 years after product phase-out are ensured, e.g. through the development and production of our own motherboards. This enables long-lasting machine concepts without renewed engineering effort.

Easy integration

Thanks to the full-fledged Windows operating system, the SIMATIC ITP1000 is easy to integrate into the existing IT Infrastructure.

High performance

Thanks to the notebook CPU used, the SIMATIC ITP1000 is a fully fledged PC, which can be turned into an office workstation using a docking station. Mobile applications on tablet PCs give rise to new application possibilities.

Lightweight and compact

Despite high device performance and many integrated functions, the SIMATIC ITP1000 is highly compact and weighs in at only 1.6 kg

Options

A wide range of options (RFID, bar code reader, camera) provide a tailor-made solution for your industrial application.

Other advantages

  • Low-cost SIMATIC runtime software packages are available when SIMATIC ITP1000 is ordered along with the software
  • Comprehensive accessories for a variety of applications (e.g. docking station, bags)
  • Customized design and functional adaptations possible


Application

Typical application areas are to be found in service/maintenance, within the scope of Industry 4.0 ("paperless factory"), for production planners, power data management or, for example, measuring and testing tasks.



Design

Design

The SIMATIC ITP1000 is a table PC with high computing capacity.

  • Interfaces (under service flap)
    • 1 x LAN 10/100/1 000 Mbps Ethernet interface (RJ45)
    • 2 x USB V3.0·1 x RS232
    • 1 x mini-display port (resolution: up to 4 096 x 2 304@60Hz)
  • Other interfaces
    • 1 x SD card reader
    • 1 x Type C USB
    • 1 x Universal Audio Jack (UAJ)
    • 1 x DC-in
    • Docking interface
Design versions
  • Processor/main memory configuration:
    • Intel Celeron G3902E (2M cache, 1.60 GHz)
    • Intel Core i5 6442EQ, 1.9 GHz (2.7 GHz), Quad Core
  • Main memory capacity:
    • 4 GB, 8 GB or 16 GB DDR4-RAM
  • Drives:
    • Solid-state drive, 256 GB, M.2
    • Solid-state drive, 512 GB, M.2
  • Operating system preinstalled:
    • Without operating system
    • Windows 7 Ultimate 64-bit, multi-language
    • Windows 10 IoT Enterprise 2016 LTSB (64-bit)
  • Further options (possible in every combination)
    • None
    • Camera (5 megapixels with torch function)
    • RFID reader (13.56 MHz)
    • 1D/2D bar code reader
Components of the operator control unit:
  • 10" multi-touch display
  • 1 280 x 800 resolution
  • 8 side function keys


Technical specifications

Article number

6AV7880-0....-...2



SIMATIC ITP1000

General information



Design of the programming device

Tablet PC

Display



Design of display

10" multi-touch

Resolution (pixels)



  • ● Horizontal image resolution

1 280 Pixel

  • ● Vertical image resolution

800 Pixel

General features



  • ● Luminance

250 cd/m²

Backlighting



  • ● Type of backlighting

LED

Control elements



Keyboard fonts



  • ● Design

Touch

Touch operation



  • ● Integrated touch pad

No

Supply voltage



Design of the power supply

External wide-range power supply; 3-pole

permissible range, lower limit (AC)

100 V; ±10 %, sinusoidal

permissible range, upper limit (AC)

240 V; ±10 %, sinusoidal

Line frequency



  • ● permissible range, lower limit

47 Hz

  • ● permissible range, upper limit

63 Hz

Processor



Processor type

Celeron G3902 (2C/2T, 1.6 GHz, 2 MB cache); Intel Core i5-6442EQ (6 MB cache, up to 2.70 GHz, iAMT)

Hyper-threading

No

Turbo Boost Technology 2.0

Yes

Graphic



Graphics controller

Intel® HD graphics 530

Drives



SSD

Yes

  • ● Memory capacity

256 Gbyte; Up to 512 GB SSD

TPM Security Chip

Yes

Memory



Type of memory

DDR4-SDRAM SO-DIMM

Work memory



  • ● integrated

4 Gbyte; 8 GB or 16 GB

Accumulator



Replaceable

Yes; Lithium-ion battery

Capacity

5 900 mA·h

Battery runtime, min.

6 h; According to MobileMark 2014

Interfaces



Number of RS 232 interfaces

1

Number of USB interfaces

3; USB 3.0

  • ● Type A

2

  • ● Type C

1

Bluetooth radio standard

Yes; V4.0

Multimedia card/SD card slot

2 in 1 (SDHC UHS-II, MMC)

Universal Audio Jack

Yes; Audio socket for 3.5 mm jack

Video interfaces



  • ● DisplayPort

Yes; DP 1.2 (Mini DisplayPort)

Industrial Ethernet



  • ● Industrial Ethernet interface

1 x Ethernet (RJ45)

  • — 100 Mbps

Yes

  • — 1000 Mbps

Yes

  • ● IAMT (Intel Active Management Technology)

Yes

WLAN



  • ● Type

IEEE 802.11 a/b/g/n and ac

Integrated Functions



Monitoring functions



  • ● Status LEDs

Battery charge level, device status, access to drive, WLAN active, SD card, application LED

EMC



Interference immunity against discharge of static electricity



  • ● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2

Yes; ±4 kV contact discharge (to IEC 801-2/IEC 1000-4-2; ESD), ±8 kV air discharge (to IEC 801-2/IEC 1000-4-2; ESD)

Interference immunity to cable-borne interference



  • ● Interference immunity on supply cables

±2 kV (according to IEC 61000-4-4, burst); ±1 kV (according to IEC 61000-4-5, surge pulse/line to line); ±2 kV (according to IEC 61000-4-5, surge pulse/line to ground)

  • ● Interference immunity on signal cables

±1 kV (according to IEC 61000-4-4, burst, length < 30 m); ±2 kV (according to IEC 61000-4-4, burst, length > 30 m); ±2 kV (according to IEC 61000-4-5, surge sym./line to ground, length > 30 m)

Degree and class of protection



Degree of protection acc. to EN 60529

IP40

Standards, approvals, certificates



CE mark

Yes

Conforms to MIL-STD-810G

Yes

DIN/ISO 9001

Yes

Ambient conditions



Ambient temperature during operation



  • ● min.

5 °C; Max. 10 °C/h (no condensation)

  • ● max.

45 °C; Max. 10 °C/h (no condensation)

Ambient temperature during storage/transportation



  • ● min.

-20 °C; Max. 20 °C/h (no condensation)

  • ● max.

60 °C; Max. 20 °C/h (no condensation)

Relative humidity



  • ● Operation, min.

5 %; At 30 °C/h (no condensation); Tested according to IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-14

  • ● Operation, max.

85 %; At 30 °C/h (no condensation); Tested according to IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-14

Vibrations



  • ● Operation, tested according to IEC 60068-2-6

Yes

Shock testing



  • ● tested according to IEC 60068-2-27

Yes

Operating systems



Additional info on operating system

Multi-Language User Interface (MUI): 6 languages (English, German, French, Spanish, Italian, Chinese)

pre-installed operating system



  • ● Windows 7

Yes; Ultimate 64 bit, SP1

Software



Preinstalled



  • ● STEP 7 Professional 2010

No

  • ● STEP 7 Professional (TIA Portal)

No

  • ● WinCC flexible Advanced 2008

No

  • ● WinCC Advanced (TIA Portal)

No

  • ● STEP 5

No

Mechanics/material



Material



  • ● Magnesium alloy

Yes

Material of housing

metal

Socket for Kensington lock

Yes

rubber corner guards

Yes

Dimensions



Width

330 mm

Height

32 mm

Depth

214 mm

Weights



Weight, approx.

1.6 kg; incl. rechargeable battery

Scope of supply



Accumulator

Yes

Power supply

Yes

Recovery media

Yes; Restore & Recovery

Other



free hotline

Yes

Warranty period

36 mo; except for: rechargeable battery (6 months)

Note:

Made in Germany: development and production in Germany
